Carli 05-16 Ford F250/350 SD Unchained 3.0 Bypass Shock Set W/4.5in Lift - CS-FUC30SPKG-45-05

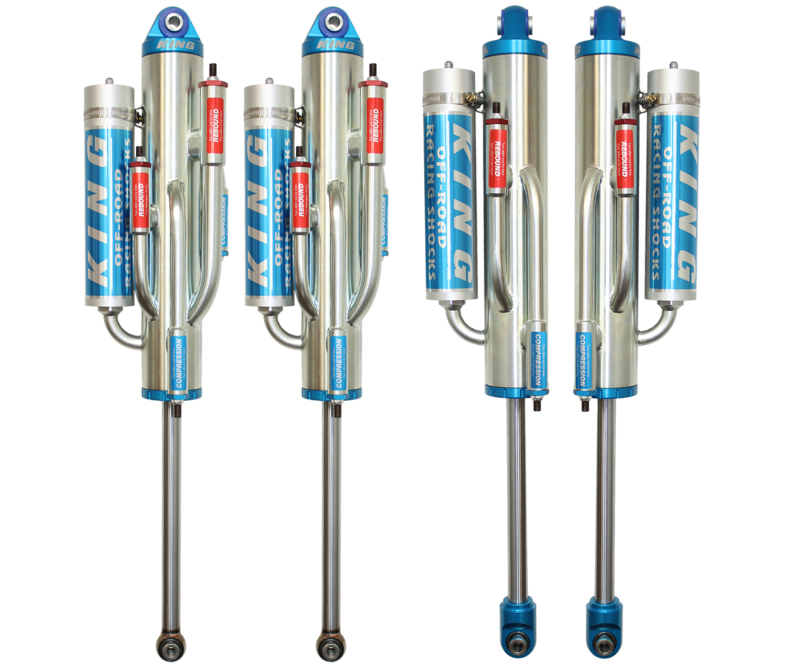

If you’re looking for unmatched off-road capability, your search is over. Built to our specs by King Off-Road Racing Shocks, these multi-tube bypass shocks feature Carli-specific pistons, shafts, and valving to deliver confident performance over the most challenging off-road terrain. Bypass shocks utilize external tubes to create a shock with multiple compression zones. Typically, there will be a tube bordering the compression zone at ride height that will allow fluid to freely move around the piston giving a supple ride. Once uneven ground is encountered, the piston will move upward closing off the port, thereby forcing all fluid through the valving which substantially increases the shock’s resistance in this secondary zone. The tubes (one for compression, one for rebound) are fitted with one-way check valves and feature damping adjustment for fine tuning. Bypass style shocks are ideal for rigs that run at high speeds over rough terrain where they must endure repeated long travel, fast piston speed, high intensity suspension events.

This Part Fits:

Year	Make	Model	Submodel
2009-2010	Ford	F-250 Super Duty	Cabela's
2008-2009	Ford	F-250 Super Duty	FX4
2005-2010	Ford	F-250 Super Duty	Harley-Davidson Edition
2005-2016	Ford	F-250 Super Duty	King Ranch
2005-2016	Ford	F-250 Super Duty	Lariat
2013-2016	Ford	F-250 Super Duty	Platinum
2005-2016	Ford	F-250 Super Duty	XL
2005-2016	Ford	F-250 Super Duty	XLT
2009-2010	Ford	F-350 Super Duty	Cabela's
2008-2009	Ford	F-350 Super Duty	FX4
2005-2010	Ford	F-350 Super Duty	Harley-Davidson Edition
2005-2016	Ford	F-350 Super Duty	King Ranch
2005-2016	Ford	F-350 Super Duty	Lariat
2013-2016	Ford	F-350 Super Duty	Platinum
2005-2016	Ford	F-350 Super Duty	XL
2005-2016	Ford	F-350 Super Duty	XLT
