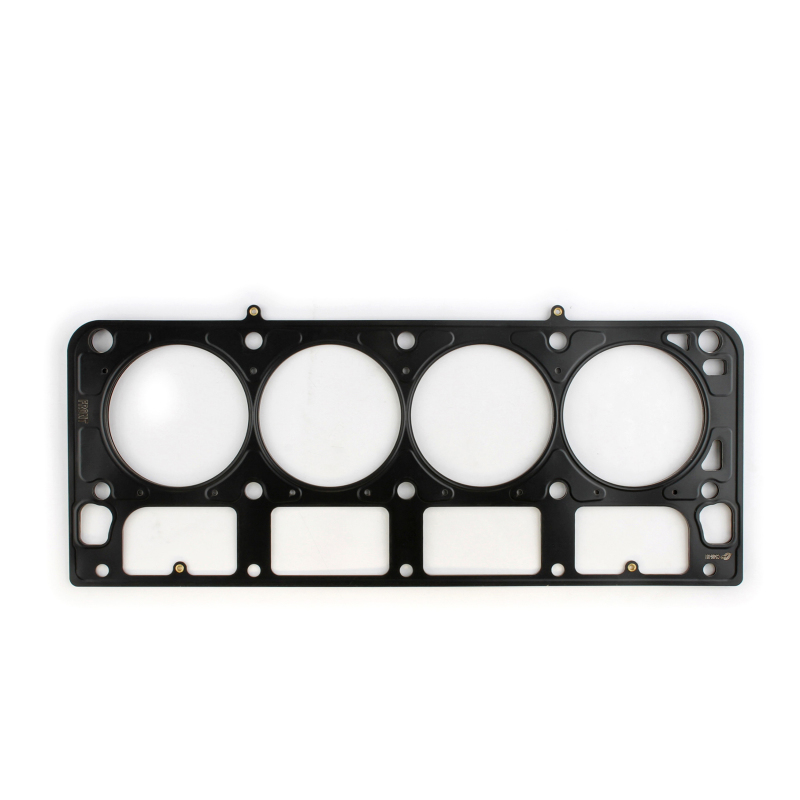

Cometic GM LS1 SB 4.100in Bore .066in MLS-5 Head Gasket - C5489-066

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
2001-2004	Avanti	II	Base
2004-2007	Cadillac	CTS	V
2010-2015	Chevrolet	Camaro	SS
1998-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
2003	Chevrolet	Corvette	50th Anniversary Edition
2003	Chevrolet	Corvette	50th Anniversary Edition Pace Car
1997-2013	Chevrolet	Corvette	Base
2010-2013	Chevrolet	Corvette	Grand Sport
1998	Chevrolet	Corvette	Indianapolis 500 Pace Car
2001-2004	Chevrolet	Corvette	Z06
2014-2017	Chevrolet	SS	Base
2005-2006	Chevrolet	SSR	Base
2006-2009	Chevrolet	Trailblazer	SS
1998-2002	Pontiac	Firebird	Formula
1998-2002	Pontiac	Firebird	Trans Am
2009	Pontiac	G8	GXP
2004-2006	Pontiac	GTO	Base
