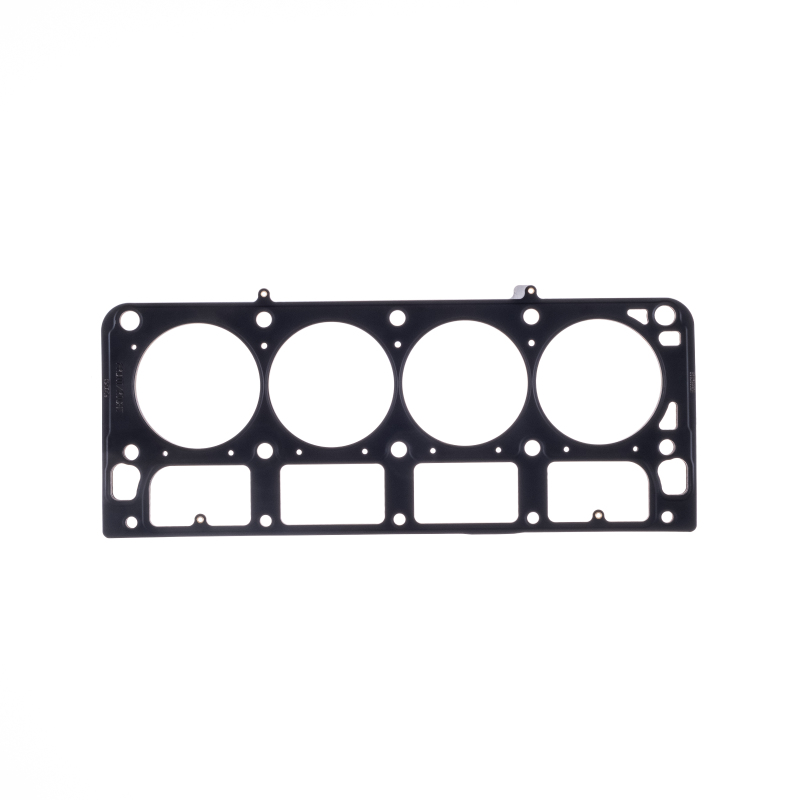

Cometic GM LS9/LSA Gen-4 Small Block V8 .052in MLX Cylinder Head Gasket - 4.100in Bore - RHS - C5985-052

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
2009-2013	Cadillac	CTS	Base
2010-2013	Cadillac	CTS	Luxury
2010-2013	Cadillac	CTS	Performance
2010-2013	Cadillac	CTS	Premium
2009-2015	Cadillac	CTS	V
2012-2013	Chevrolet	Camaro	LS
2012-2013	Chevrolet	Camaro	LT
2012-2013	Chevrolet	Camaro	SS
2012-2015	Chevrolet	Camaro	ZL1
2013	Chevrolet	Corvette	427
2009-2013	Chevrolet	Corvette	Base
2010-2013	Chevrolet	Corvette	Grand Sport
2009-2013	Chevrolet	Corvette	Z06
2011	Chevrolet	Corvette	Z06 Carbon
2009-2013	Chevrolet	Corvette	ZR1
