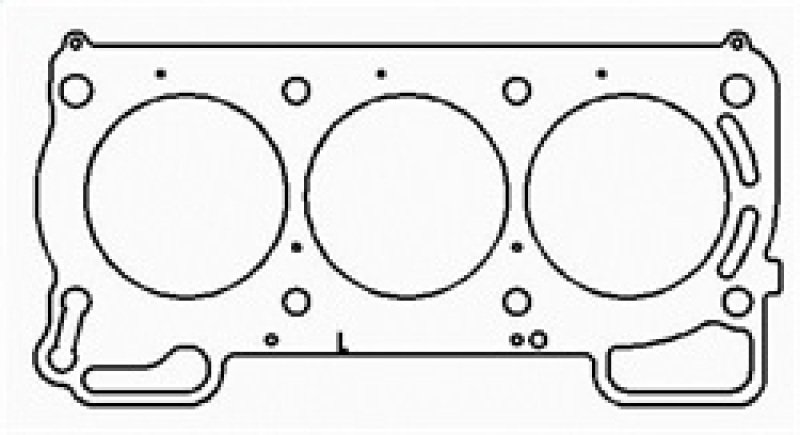

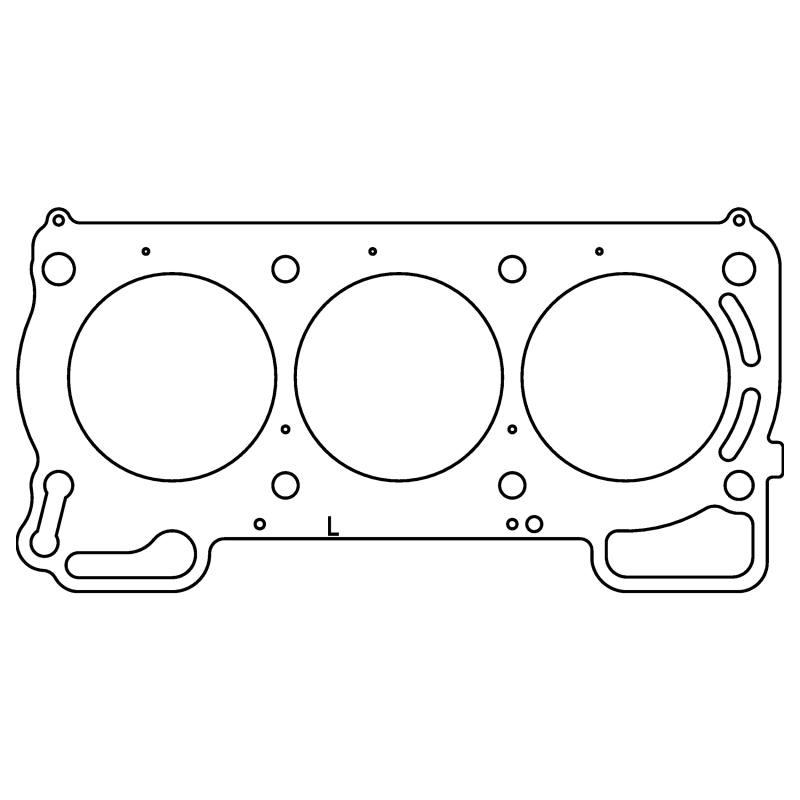

Cometic Subaru EZ30D mk I .045in MLS Cylinder Head Gasket - 90mm Bore - LHS - C5861-045

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
2006-2007	Subaru	B9 Tribeca	Base
2006-2007	Subaru	B9 Tribeca	Limited
2009	Subaru	Legacy	3.0 R
2008-2009	Subaru	Legacy	3.0 R Limited
2009	Subaru	Outback	3.0 R Limited
2002-2004	Subaru	Outback	H6
2004	Subaru	Outback	H6 35th Anniversary Edition
2004	Subaru	Outback	H6 VDC
2001-2004	Subaru	Outback	L.L. Bean
2005-2006	Subaru	Outback	R
2005-2008	Subaru	Outback	R L.L. Bean Edition
2006	Subaru	Outback	R VDC Limited
2001-2003	Subaru	Outback	VDC
2005	Subaru	Outback	VDC Limited
