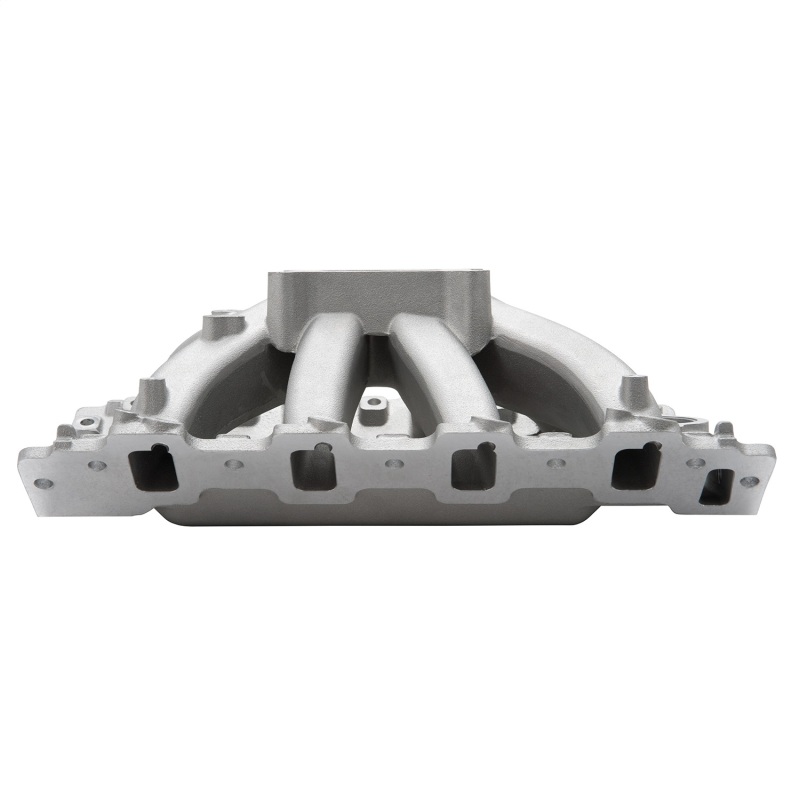

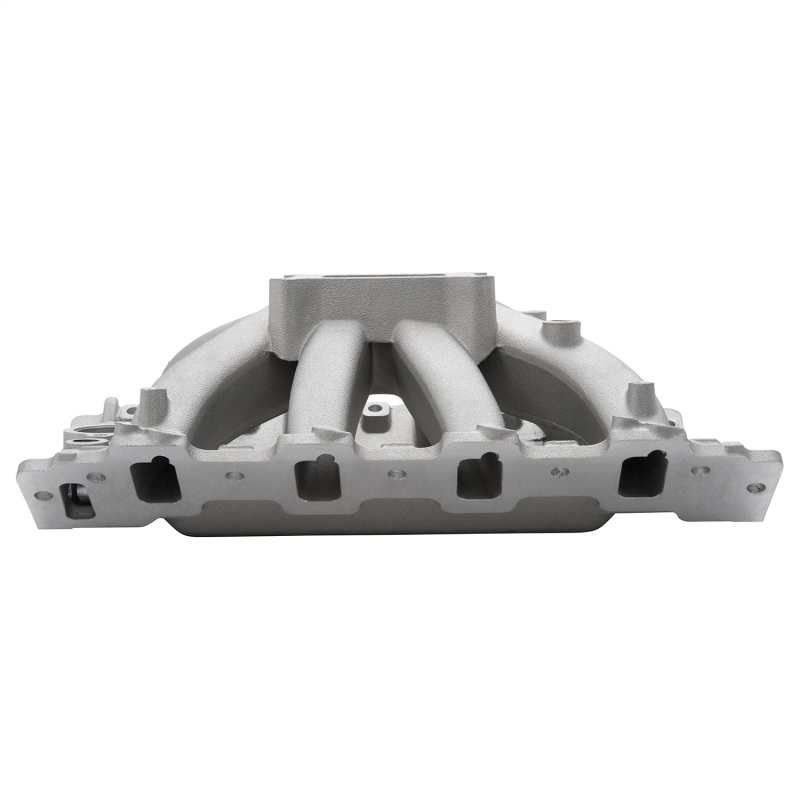

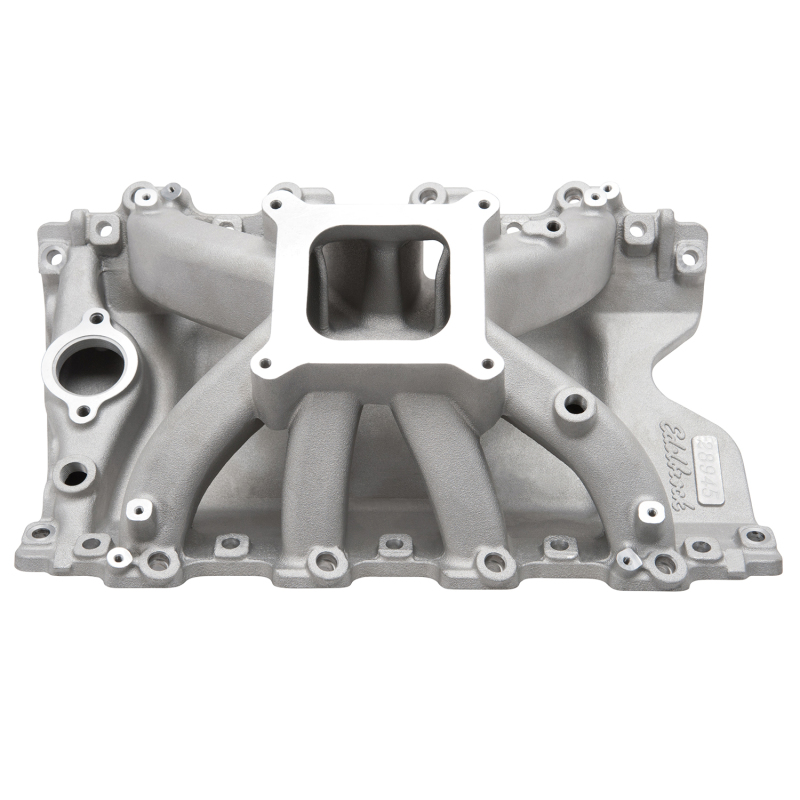

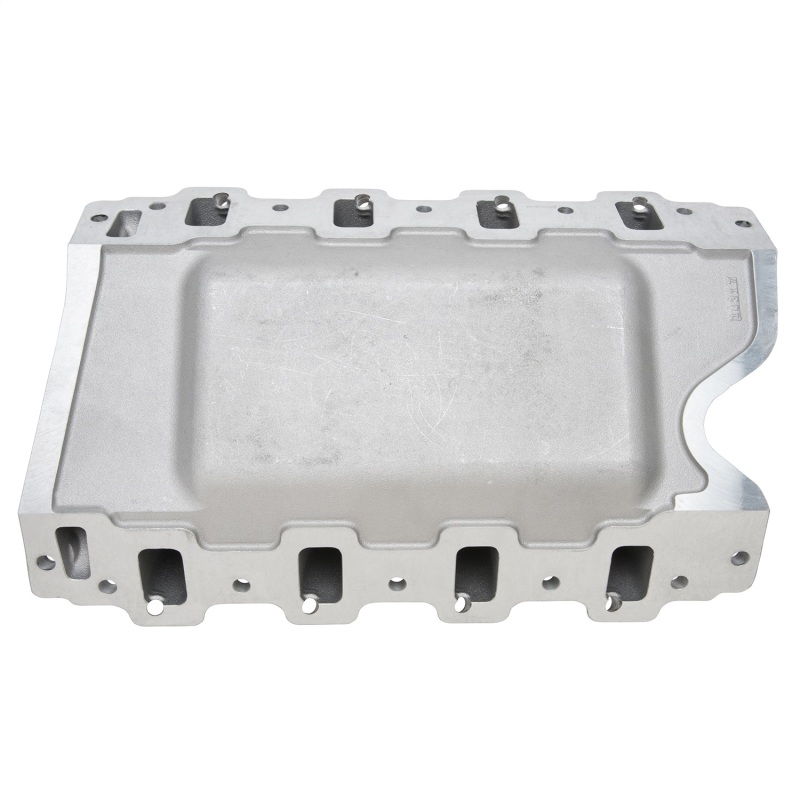

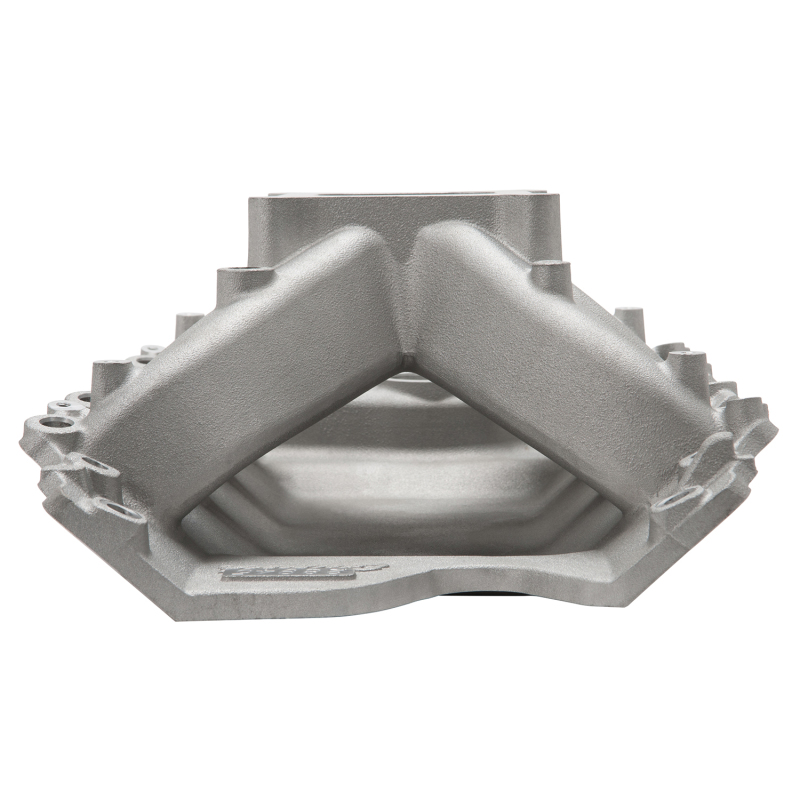

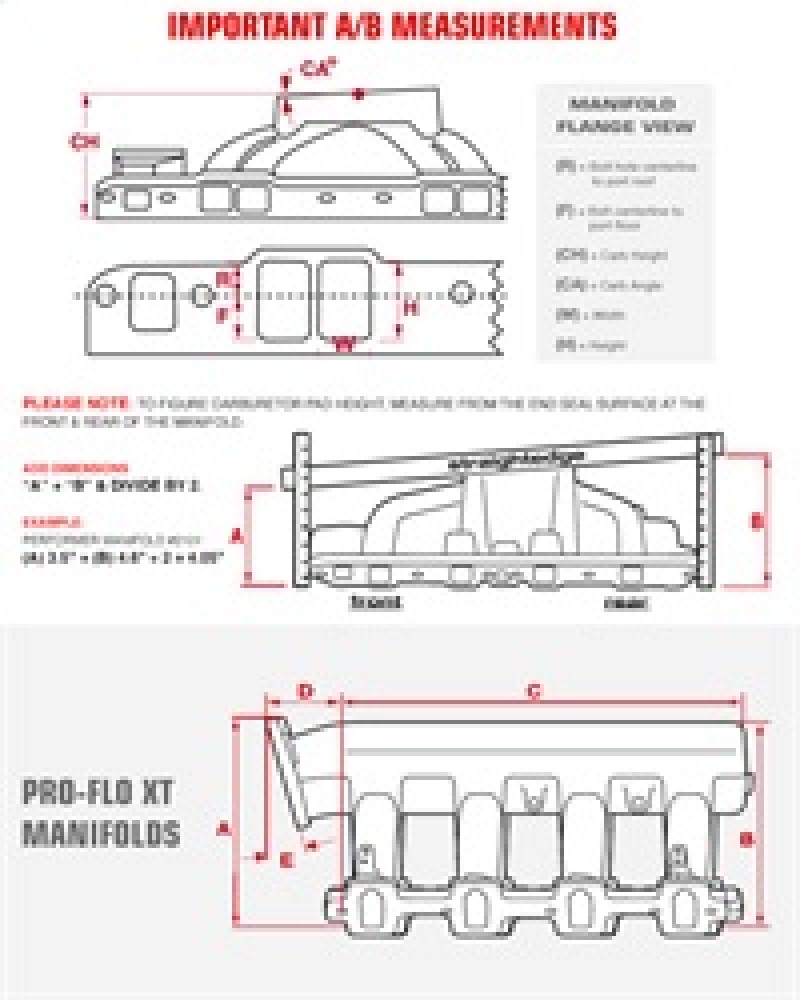

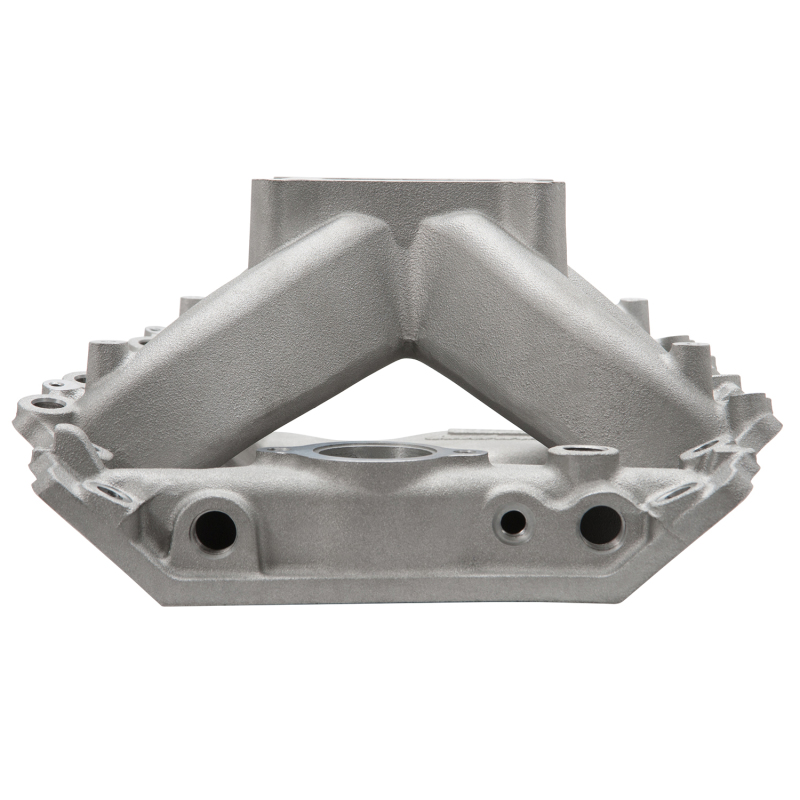

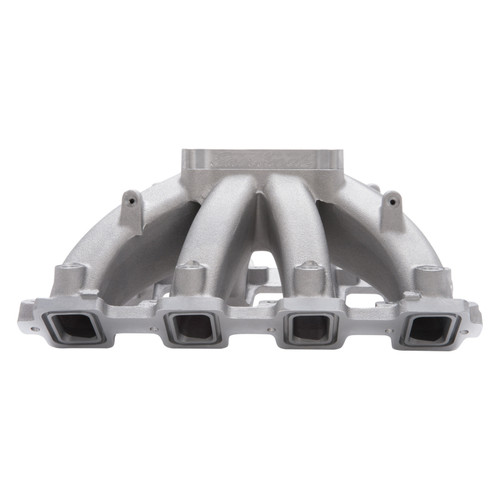

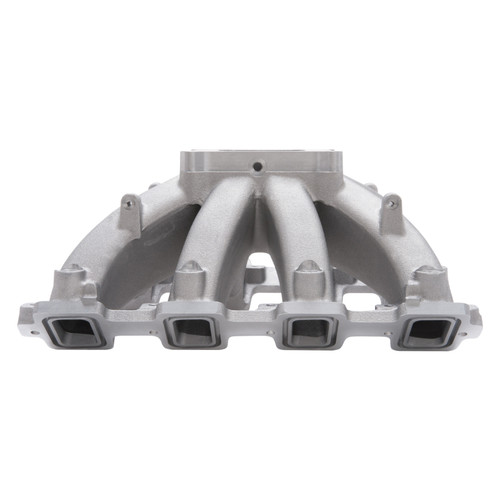

The Edelbrock Victor Jr. Holden is for use with competition 355plus c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. The Victor Jr. Holden is a single-plane design that is tuned for maximum air flow from 3500 to 7500 rpm. It features a taller design with long tapered runners for a broad operating rpm range. Will fit both stock 1988-1998 EFI style cylinder heads and the Edelbrock Holden VN RPM cylinder heads. It also features a 4150 flange for use with square-bore carburetors and throttle bodies. Includes extra material for porters to modify for use with 4500 series applications. The water outlet is machined for use with a small-block Chevy waterneck. Carburetor Recommendations: OEM 4-bbl. Edelbrock Thunder Series AVS or Performer Series carb, 600-800 cfm Installation Notes: .Recommended intake gasket: stock gasket set or equivalent. Manifold Dimensions: Manifold height: A-6.95Gg, B-6.95Gg, Carb pad height: 6.95Gg. Port exit dimensions: 1.18Gg x 2.02Gg.
