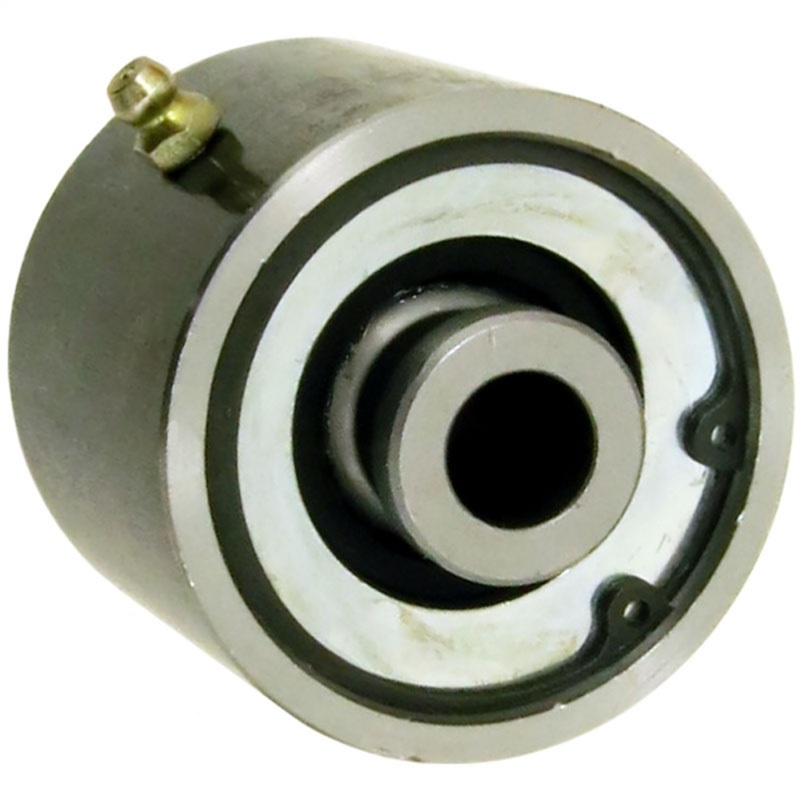

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable 0.180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint features a 3.150 in. mounting width ball with a 0.718 in. thru hole.
- MPN:
- RJ-330000-101
- Product ID:
- 565304
