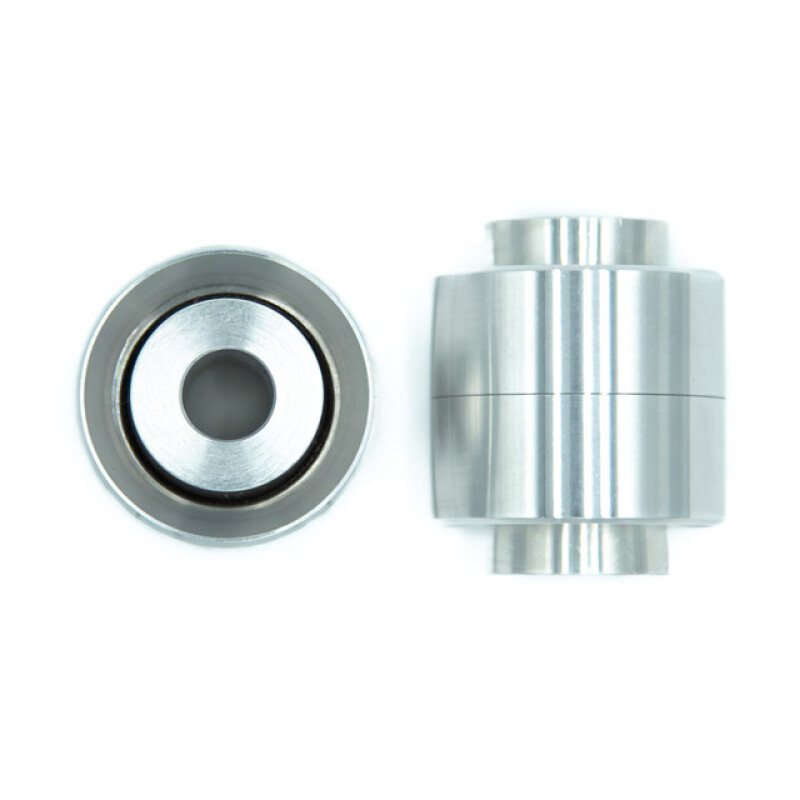

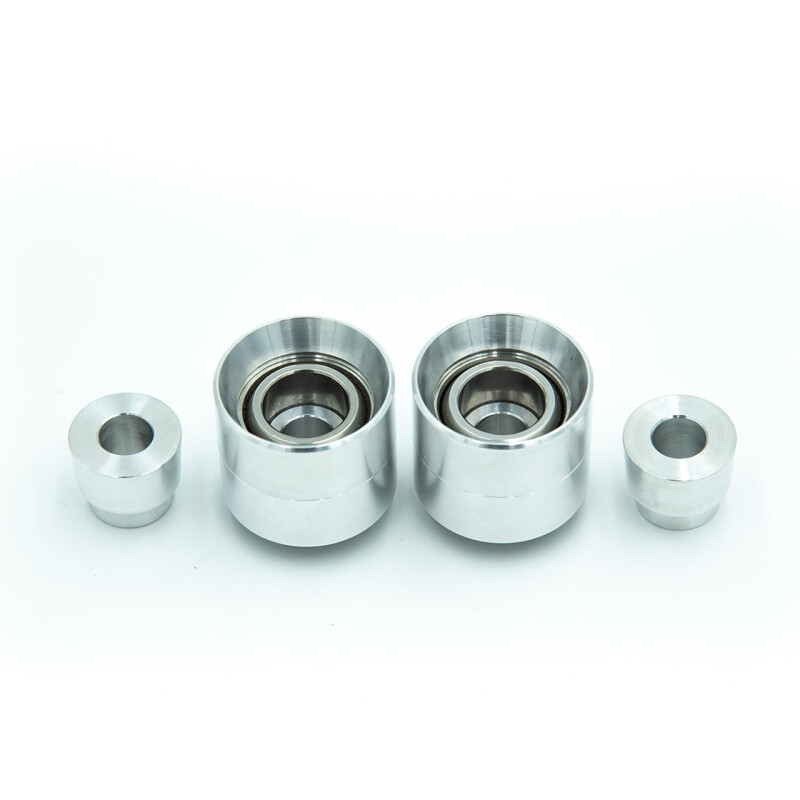

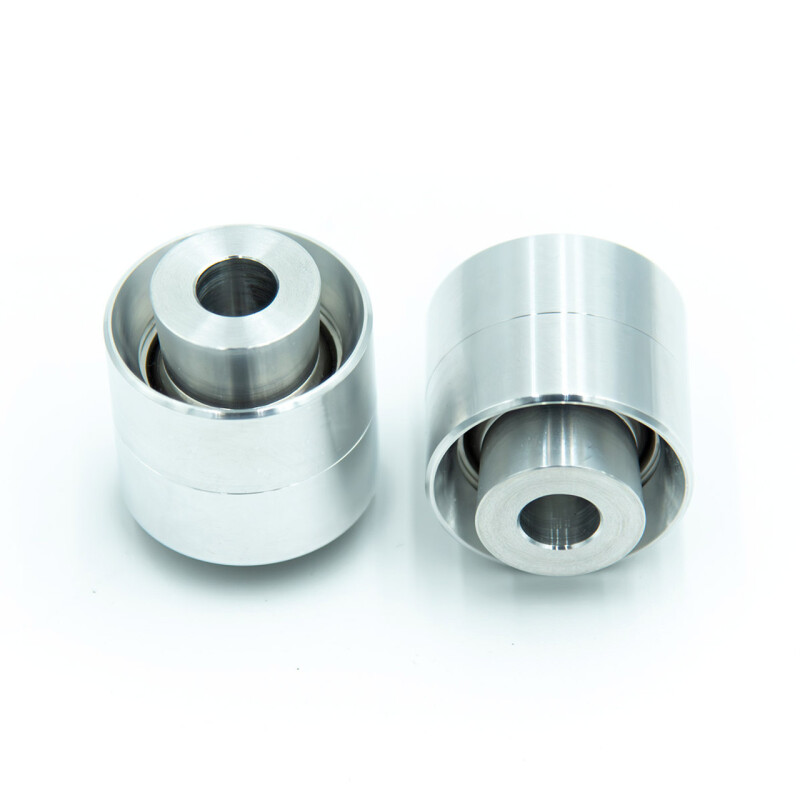

The SPL rear knuckle bushings replace the rubber factory knuckle bushing with a low friction PTFE-lined spherical bearing. Replacing the OEM rubber bushing eliminates deflection under heavy acceleration and braking loads that leads to unwanted geometry changes, and prevents binding by allowing the knuckle to smoothly articulate. The reduced deflection also translates to improved driver feedback from the tire and better overall response. We use the largest possible FK bearing, to increase longevity and reduce NVH, mounted in a 6061-T6 aluminum housing precision cut with +/- .001" tolerance to insure proper fitment.BenefitsLightweight: 0.674 lbs (306g) / 0.337 lbs (153g) per SideImproves Throttle and Braking ResponseReduced Wheel HopMaintenance-Free, US Made, PTFE-Lined FK BearingsMaterials6061-T6 Aluminum Bearing ShellsSteel PTFE-lined FK Spherical Bearings
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2016 | Scion | FR-S | Base |
| 2013-2020 | Subaru | BRZ | Limited |
| 2013-2019 | Subaru | BRZ | Premium |
| 2015 | Subaru | BRZ | Series.Blue |
| 2019 | Subaru | BRZ | Series.Gray |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2018,2020 | Subaru | BRZ | TS |
| 2015-2024 | Subaru | WRX | Base |
| 2022-2025 | Subaru | WRX | GT |
| 2015-2025 | Subaru | WRX | Limited |
| 2015-2025 | Subaru | WRX | Premium |
| 2024 | Subaru | WRX | TR |
| 2025 | Subaru | WRX | TS |
| 2015-2021 | Subaru | WRX STI | Base |
| 2015 | Subaru | WRX STI | Launch Edition |
| 2015-2021 | Subaru | WRX STI | Limited |
| 2019 | Subaru | WRX STI | S209 |
| 2016 | Subaru | WRX STI | Series.HyperBlue |
| 2018 | Subaru | WRX STI | Type RA |
| 2017-2020 | Toyota | 86 | Base |
| 2018-2020 | Toyota | 86 | GT |
| 2020 | Toyota | 86 | Hakone Edition |
| 2017 | Toyota | 86 | Special Edition |
| 2019 | Toyota | 86 | TRD Special Edition |
| 2023 | Toyota | GR86 | 10th Anniversary Special Edition |
| 2022-2024 | Toyota | GR86 | Base |
| 2022-2024 | Toyota | GR86 | Premium |
| 2024 | Toyota | GR86 | TRUENO Edition |
