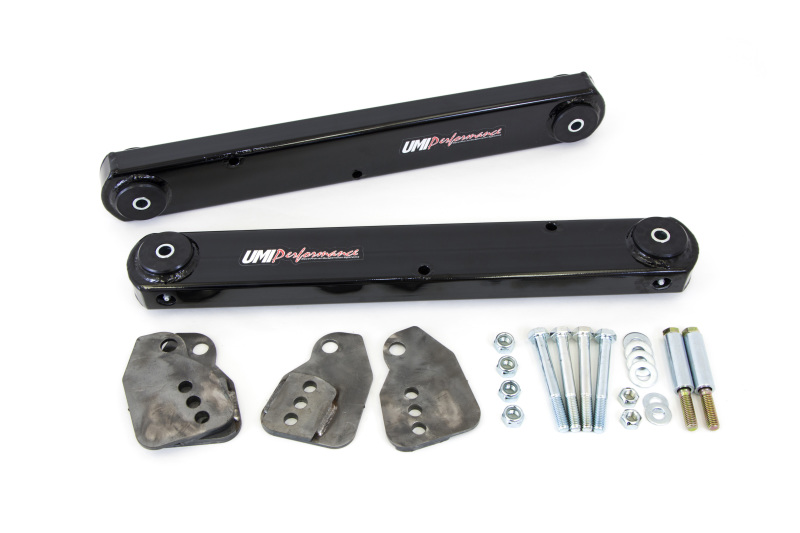

UMI Performance 78-87 GM G-Body Rear Lift Bar Set-Up - 3020-B

The UMI Performance lift bars replace your stock rear control arms adding tremendous track gains while not effecting ride height and keeping ride quality at its best. Lift bars are designed to work with axle torque to load the chassis of the car, forcing the rear wheels downward while pushing the tires into the ground for harder launches and improved 60-foot times. These bars are designed to greatly improve traction and reduce unwanted wheel hop. Constructed of boxed mild steel tubing, 0.120" wall and 0.188" thick mounting plates-completely CNC machined for exact tolerances and a superb fit. Lift bars feature grease-able Energy Suspension bushings that reduce bushing deflection but still make these arms a 100% street-able. Each lift bar features the correct provisions for adding a stock or aftermarket sway bar, sway bar holes are placed in the correct pattern to maintain the sway bar level with the rear end. All sway bar holes are reinforced with a 0.120" wall thickness steel sleeve TIG welded and sanded into place. The rear mounting brackets feature two settings that allow the lift bar to be lowered 2" or 3" depending on user preference and the vehicles suspension set-up. Lift bars also correct lost geometry and correct instant center on a lowered vehicle. Add a set of our adjustable upper control arms for the maximal rear suspension set-up! Installation: This kit can be either bolted or welded into place. All hardware and detailed installation instructions are included, hardware kit also includes (4) new metric grade 10.9 control arm bolts with nylon lock nuts. If bolting into place some drilling is required with this kit. Some hardware included not shown. Features: - Built using 0.120" Wall Thickness Rectangular Mild Steel Tubing - CNC Machined for Precision Tolerances and Accuracy - MIG Welded DOM Steel Bushing Holders - Grease-able Energy Suspension Bushings with Grease Fittings - Durable Long Lasting Powder Coat finish

This Part Fits:

Year	Make	Model	Submodel
1978-1987	Buick	Regal	Base
1988	Buick	Regal	Custom
1982-1983	Buick	Regal	Estate Wagon
1987	Buick	Regal	GNX
1984-1987	Buick	Regal	Grand National
1978-1988	Buick	Regal	Limited
1982	Buick	Regal	Limited Turbo
1978-1982	Buick	Regal	Sport
1983-1986	Buick	Regal	T-Type
1978-1981	Chevrolet	Malibu	Base
1978-1983	Chevrolet	Malibu	Classic
1978-1980	Chevrolet	Malibu	Classic Estate
1978-1981	Chevrolet	Malibu	Classic Landau
1979-1980	Chevrolet	Malibu	Classic Sport
1979-1980	Chevrolet	Malibu	Estate
1979	Chevrolet	Malibu	Landau
1979	Chevrolet	Malibu	Police
1979-1980	Chevrolet	Malibu	Sport
1979,1981-1988	Chevrolet	Monte Carlo	Base
1983	Chevrolet	Monte Carlo	CL
1978-1981	Chevrolet	Monte Carlo	Landau
1986-1988	Chevrolet	Monte Carlo	LS
1978,1980	Chevrolet	Monte Carlo	Sport
1983-1988	Chevrolet	Monte Carlo	SS
1980	Oldsmobile	Cutlass	Base
1980-1981	Oldsmobile	Cutlass	Brougham
1980-1981	Oldsmobile	Cutlass	LS
1978-1979	Oldsmobile	Cutlass	Vista Cruiser
1979	Oldsmobile	Cutlass	Vista Cruiser Brougham
1978-1988	Pontiac	Grand Prix	Base
1981-1987	Pontiac	Grand Prix	Brougham
1984-1988	Pontiac	Grand Prix	LE
1978-1983	Pontiac	Grand Prix	LJ
1988	Pontiac	Grand Prix	SE
1978-1980	Pontiac	Grand Prix	SJ
1988	Pontiac	LeMans	Aerocoupe
1988	Pontiac	LeMans	Aerocoupe YL
1978-1981,1988	Pontiac	LeMans	Base
1978-1981	Pontiac	LeMans	Safari
1988	Pontiac	LeMans	SE
1988	Pontiac	LeMans	Value Leader
