Wilwood Forged Superlite 4R ST BB Front Kit Road Race 82-92 Camaro//Firebird - 140-12518

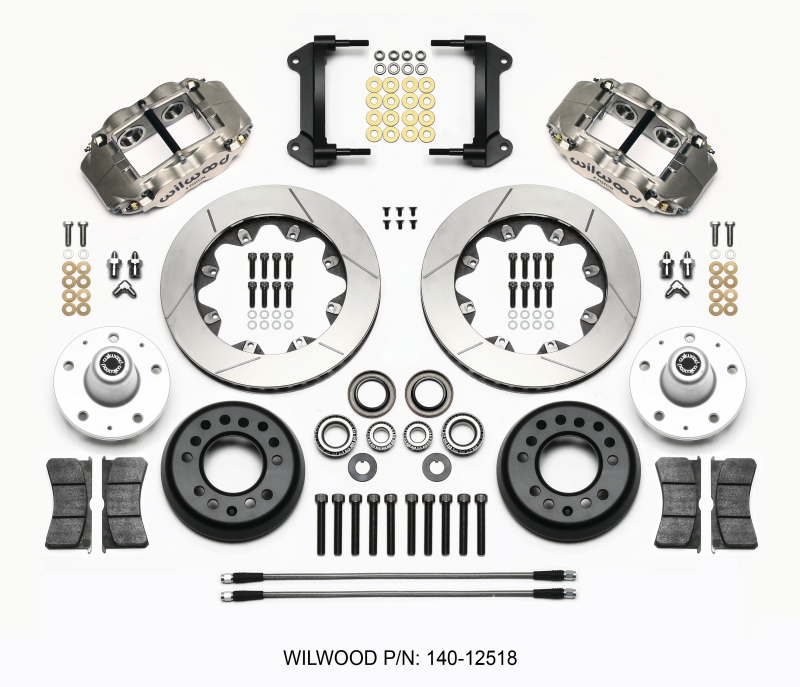

This kit is configured for dedicated road racing on all 1982-92 Camaros and Firebirds using the OE factory single piston caliper spindles that have been modified to accept the Wilwood caliper brackets. Four piston, nickel finish Quick-Silver FSL4R/ST calipers, with Thermlock pistons and internal knock-back damping springs, are volume matched for system compatibility with either a factory power brake booster and master cylinder, or a manual balance bar style pedal with appropriately sized master cylinders. The kit includes two-piece 12.19" diameter Spec 37 alloy GT series directional vane rotors to comply with SCCA American Sedan rules, cross-overs into the NASA pony car categories, or any other sanction racing with racing with 16" or 17" wheels. Unsprung and rotating weight are minimized by using forged aluminum hats to mount the rotors to the forged aluminum hubs supplied with the kit. The kit also includes high-temp Wilwood race compound pads, machined billet radial mount caliper brackets, stainless steel braided flexlines, extra length wheel studs, hub bearings, grease seals, and all premium grade hardware. Detailed instructions illustrating the required spindle modifications can be found on page 2 of the assembly instructions.

This Part Fits:

Year	Make	Model	Submodel
1988	Chevrolet	Camaro	Base
1982-1986	Chevrolet	Camaro	Berlinetta
1985-1990	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	LT
1989-1992	Chevrolet	Camaro	RS
1992	Chevrolet	Camaro	RS Heritage Edition
1982-1987	Chevrolet	Camaro	Sport
1982-1987,1991-1992	Chevrolet	Camaro	Z28
1992	Chevrolet	Camaro	Z28 Heritage Edition
1982	Chevrolet	Camaro	Z28 Indianapolis 500 Pace Car
1982-1992	Pontiac	Firebird	Base
1989-1992	Pontiac	Firebird	Formula
1982-1986	Pontiac	Firebird	S/E
1982-1992	Pontiac	Firebird	Trans Am
1989-1992	Pontiac	Firebird	Trans Am GTA
1989	Pontiac	Firebird	Trans Am GTA SE
