Wilwood Short Remote M/C Kit 1in Bore 3/8in-24 Banjo Outlet - 260-13622

MSRP: $108.06
$86.31
( saved $21.75 )
No reviews yet Write a Review
SKU:
WIL260-13622
UPC:
889545067347
Availability:
Special order
Shipping:
Calculated at Checkout
MPN:
260-13622

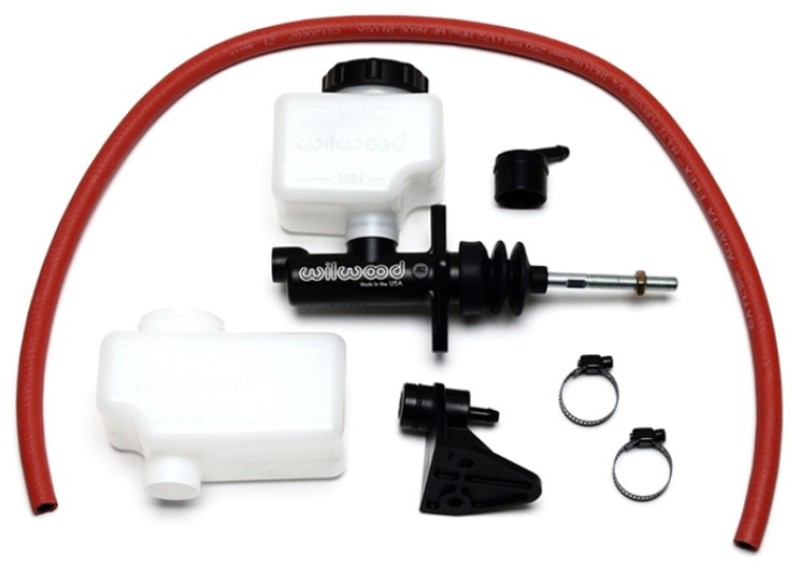

This new version of Wilwood's Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37"compact body provides 2.16" of additional clearance between the mounting flange and the fluid outlet. A full 1.12" of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8" NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
