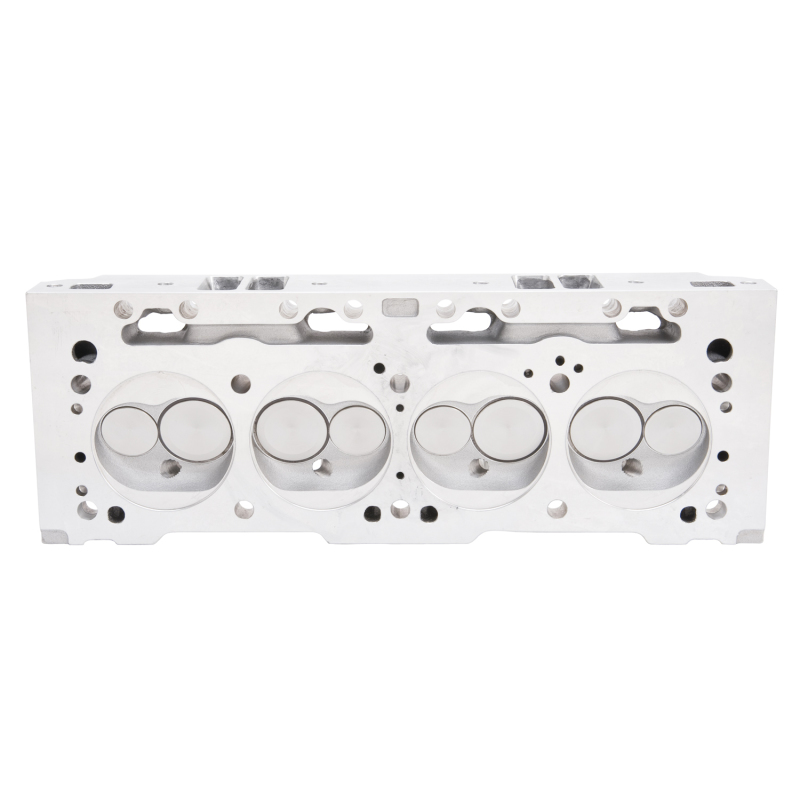

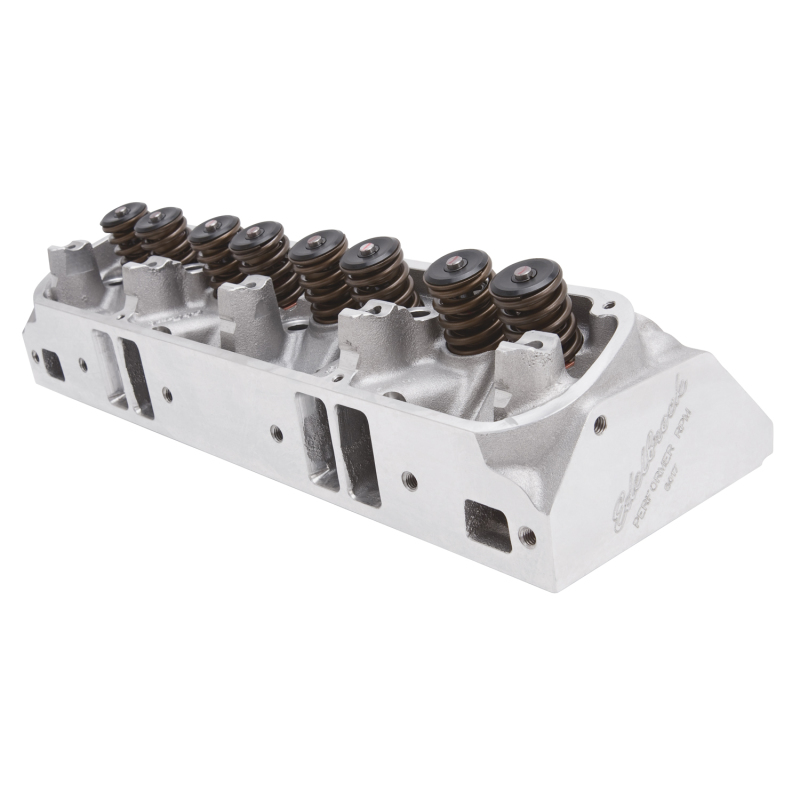

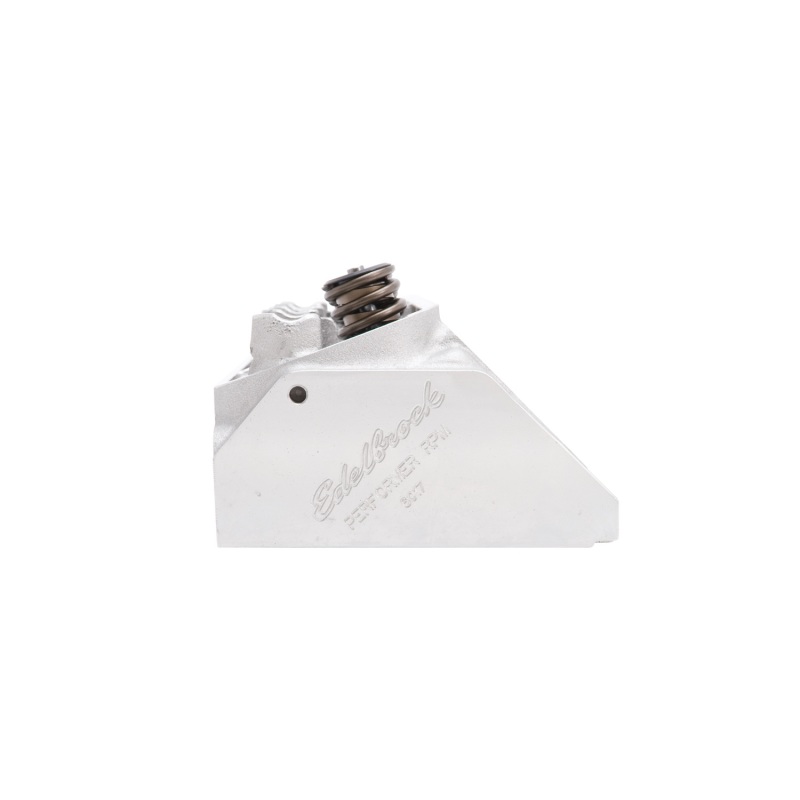

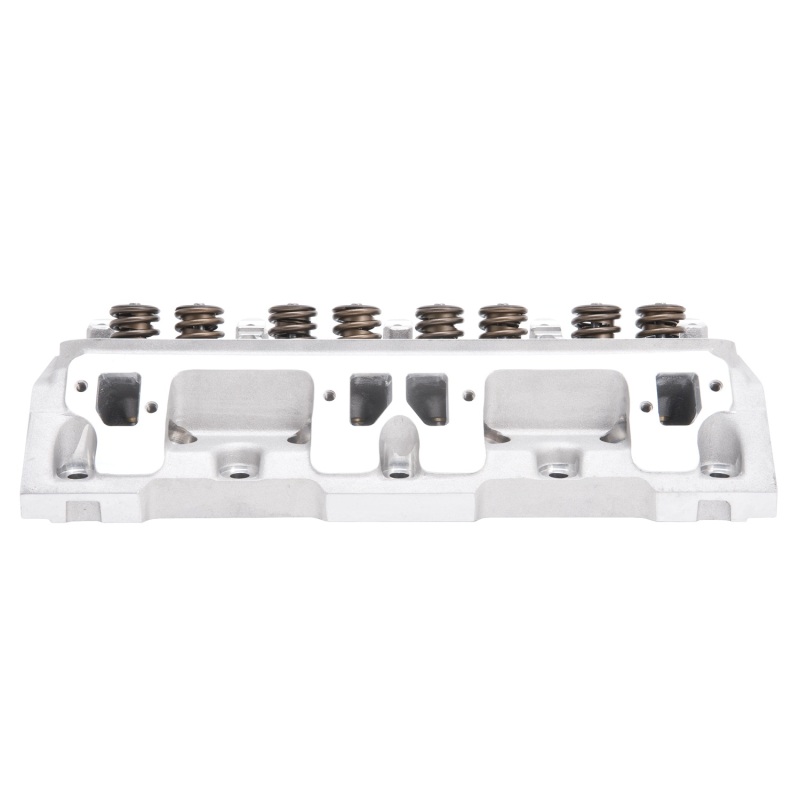

Edelbrock Cylinder Head SB Chrysler Performer RPM 340 for Hydraulic Roller Cam - 60175

Cylinder Head Specifications: Combustion chamber volume: 63cc / 65cc; Intake runner volume: 171cc; Exhaust runner volume: 77cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: N/A; Guideplate: N/A; Pushrod diameter: 5/16"; Valve angle: 18°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. * The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. Bare heads will have valve guides & seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8", pushrod diameter: 5/16".

This Part Fits:

Year	Make	Model	Submodel
1970-1973	Dodge	Challenger	Base
1970-1971	Dodge	Challenger	R/T
1972	Dodge	Challenger	Rallye
1970	Dodge	Challenger	T/A
1970-1971	Dodge	Charger	500
1970-1973	Dodge	Charger	Base
1971-1973	Dodge	Charger	Special Edition
1971	Dodge	Charger	Super Bee
1970	Dodge	Coronet	440
1970	Dodge	Coronet	500
1970-1973	Dodge	Coronet	Base
1971	Dodge	Coronet	Brougham
1971-1973	Dodge	Coronet	Crestwood
1971-1973	Dodge	Coronet	Custom
1970	Dodge	Coronet	Deluxe
1970	Dodge	Coronet	Super Bee
1968	Dodge	Dart	270
1968-1973	Dodge	Dart	Base
1969-1973	Dodge	Dart	Custom
1971-1972	Dodge	Dart	Demon
1971-1972	Dodge	Dart	Demon 340
1968-1969	Dodge	Dart	GT
1968-1969	Dodge	Dart	GTS
1971-1973	Dodge	Dart	Special
1973	Dodge	Dart	Sport
1973	Dodge	Dart	Sport 340
1969-1973	Dodge	Dart	Swinger
1972-1973	Dodge	Polara	Base
1972-1973	Dodge	Polara	Custom
1968-1973	Plymouth	Barracuda	Base
1970-1971	Plymouth	Barracuda	Gran Coupe
1971	Plymouth	Belvedere	Base
1971	Plymouth	Belvedere	Satellite
1970-1973	Plymouth	Cuda	Base
1970-1973	Plymouth	Duster	340
1970-1973	Plymouth	Duster	Base
1968,1971-1973	Plymouth	Road Runner	Base
1968-1969,1971-1973	Plymouth	Satellite	Base
1971	Plymouth	Satellite	Brougham
1971-1973	Plymouth	Satellite	Custom
1971-1973	Plymouth	Satellite	Regent
1971-1973	Plymouth	Satellite	Sebring
1971-1973	Plymouth	Satellite	Sebring Plus
1970	Plymouth	Satellite	Sport
1968-1969	Plymouth	Valiant	100
1970-1973	Plymouth	Valiant	Base
1968-1969	Plymouth	Valiant	Signet
