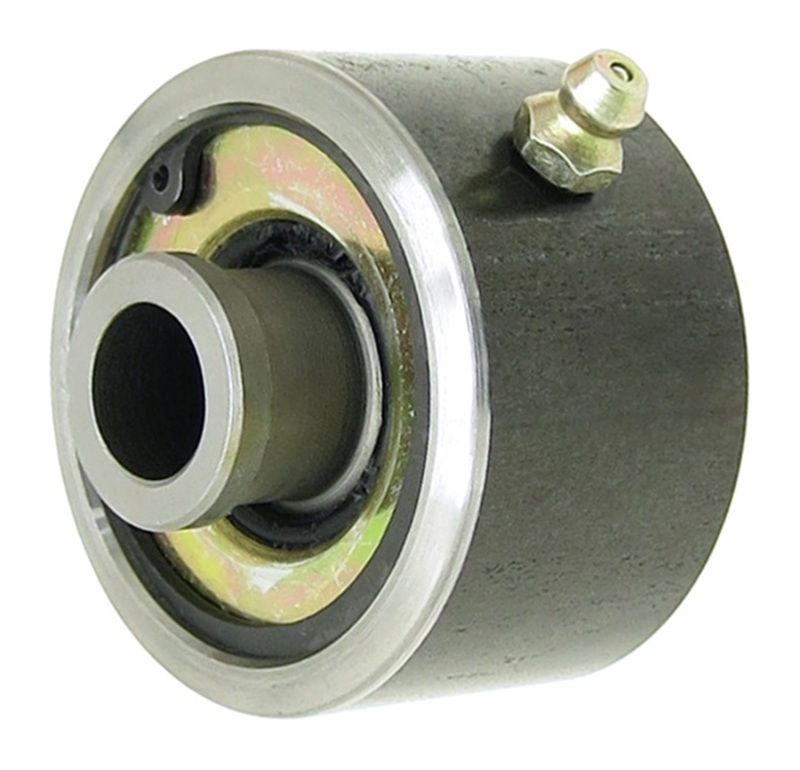

RockJocks narrow weld-on Johnny Joints(R) for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball.. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 in. o.d. narrow body and features a 1.600 in. mounting width and a .562 in. thru bolt hole.
- MPN:
- CE-9112NP-13
- Product ID:
- 564580
